分布式session实现场景

saas分布式session实现方式

在用户登录时，为当前登录用户生成一个全局唯一的token，并通过redis以这个token为 key登录用户信息为value保存到redis，并将token写到域名下的cookies中达到分布式session共享。

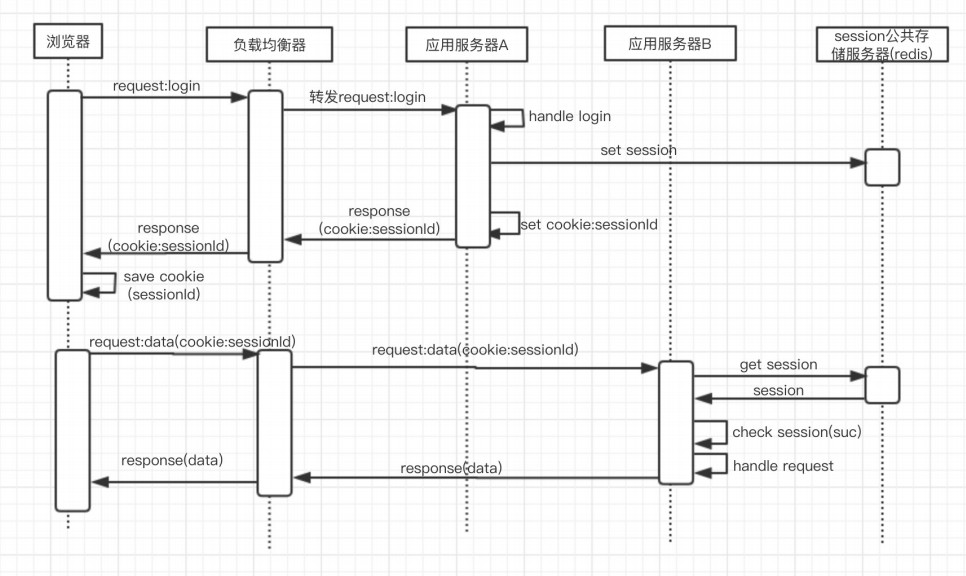

具体实现时序图如下：

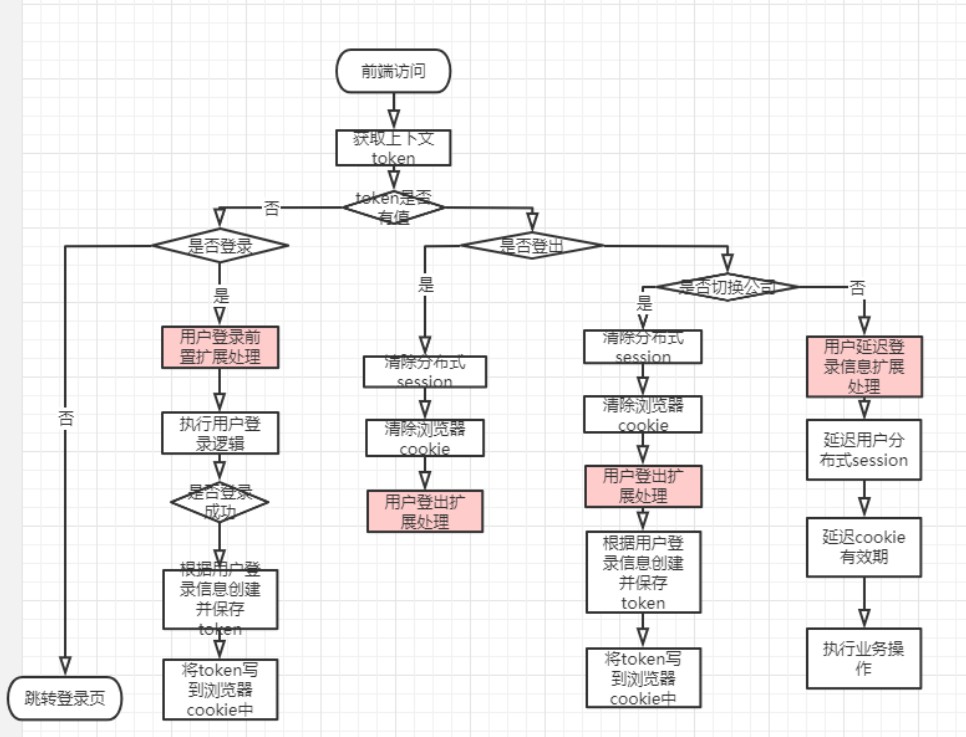

前端请求访问处理流程：

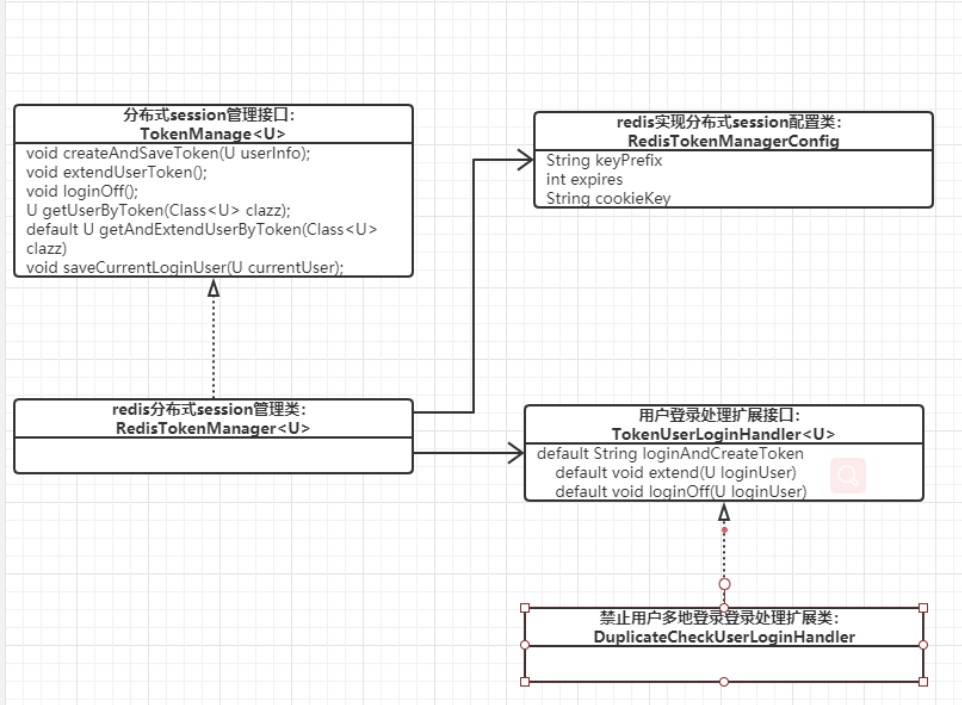

分布式session实现类图：

主要类讲解

1.分布式session管理接口:TokenManager

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
/**
 * 〈一句话功能简述〉<br>
 * Description: token管理器统一入口
 */
public interface TokenManager<U> {
    /**
     * 创建token并保存到redis和cookie中
     * @param userInfo
     * @return
     */
    String createAndSaveToken(U userInfo);

    /**
     * 延长用户token的有效时间
     */
    void extendUserToken();

    /**
     * 用户退出登陆
     */
    void loginOff();

    /**
     * 获取用户信息
     * @return
     */
    U getUserByToken(Class<U> clazz);

    /**
     * Description: 通过http上下文cookies中的token获取当前登录用户信息，如果存在登录用户，则延迟登录用户登录状态的有效时间，并返回，否则返回空
     *
     */
    default U getAndExtendUserByToken(Class<U> clazz){
        U currentUser = getUserByToken(clazz);
        saveCurrentLoginUser(currentUser);
        extendUserToken();
        return currentUser;
    }

    /**
     * Description: 保存当前登录用户人信息
     */
    void saveCurrentLoginUser(U currentUser);
}

2.用户登录处理扩展接口：TokenUserLoginHandler

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
/**
 * Description: 用户登录处理扩展接口
 */
public interface TokenUserLoginHandler<U> {
    /**
     * 执行用户登录并创建token
     * @param loginUser
     * @return
     */
    default String loginAndCreateToken(U loginUser){
        return StringConvertUtils.shortUuid();
    }

    /**
     * 验证用户登录状态有效时间
     * @param loginUser
     */
    default int extend(U loginUser){
    	return 0;
    }

    /**
     * 用户登出
     * @param loginUser
     */
    default void loginOff(U loginUser){}
}

3.redis实现分布式session配置类：RedisTokenManagerConfig

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
import org.springframework.boot.context.properties.ConfigurationProperties;

/**
 * 〈一句话功能简述〉<br>
 * Description: token配置类
 */
@ConfigurationProperties(prefix = "openerp.auth.token")
public class RedisTokenManagerConfig {

    /**
     * token前缀:可通过auth.token.keyPrefix配置
     */
    private String keyPrefix = "openerp:token:";

    /**
     * token有效期,单位为秒,默认1小时:可通过auth.token.expires配置
     */
    private int expires = 60 * 60 ;
    /**
     * 浏览器的cookie名称:可通过auth.token.cookieKey配置
     */
    private String cookieKey = "saasToken";

    public String getKeyPrefix() {
        return keyPrefix;
    }

    public void setKeyPrefix(String keyPrefix) {
        this.keyPrefix = keyPrefix;
    }

    public int getExpires() {
        return expires;
    }

    public int getExpires(String token) {
        return token.contains(AuthorizationConstants.IS_APP_KEY) ? expires * 24 * 7 : expires;
    }

    public void setExpires(int expires) {
        this.expires = expires;
    }

    public String getCookieKey() {
        return cookieKey;
    }

    public void setCookieKey(String cookieKey) {
        this.cookieKey = cookieKey;
    }
}

4.redis实现分布式session类： RedisTokenManager

获取当前请求上下文中的token：先从请求参数中获取，再从header中获取，最后从cookie中获取

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
import com.alibaba.fastjson.JSONObject;
import org.apache.commons.lang.StringUtils;
import org.apache.log4j.Logger;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import javax.servlet.http.Cookie;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.Objects;

/**
 * 〈一句话功能简述〉<br>
 * Description: redis 实现session共享的token管理器
 */
public class RedisTokenManager<U> implements TokenManager<U> {

    private Logger logger = Logger.getLogger(RedisTokenManager.class);

    private AbstractRedisCache redisUtils;
    private RedisTokenManagerConfig tokenManagerConfig;
    private ThreadLocal<U> currentLoginUser = new ThreadLocal<>();
    private TokenUserLoginHandler<U> tokenUserLoginHandler;

    public RedisTokenManager(AbstractRedisCache redisUtils, RedisTokenManagerConfig tokenManagerConfig) {
        this( redisUtils,tokenManagerConfig,new TokenUserLoginHandler<U>(){});
    }

    public RedisTokenManager(AbstractRedisCache redisUtils, RedisTokenManagerConfig tokenManagerConfig, TokenUserLoginHandler<U> tokenUserLoginHandler) {
        this.redisUtils = redisUtils;
        if (tokenManagerConfig == null) {
            tokenManagerConfig = new RedisTokenManagerConfig();
        }
        this.tokenManagerConfig = tokenManagerConfig;
        this.tokenUserLoginHandler = tokenUserLoginHandler;
    }

    @Override
    public void extendUserToken() {
        String token = getToken();
        String tokenKey = createTokenKey(token);
        if (redisUtils.exists(tokenKey)) {
            U u = getCurrentLoginUser();
            if (Objects.nonNull(u)){
                int extendTime = this.tokenUserLoginHandler.extend(u);
                redisUtils.expire(tokenKey, extendTime);
            } else {
            	redisUtils.expire(tokenKey, tokenManagerConfig.getExpires());
            }
            saveToCookie(token);
        }
    }

    @Override
    public void loginOff() {
        String token = getToken();
        if (StringUtils.isNotBlank(token)){
            String tokenKey = createTokenKey(token);
            loginOff(tokenKey);
            clearCookieToken();
            U u = getCurrentLoginUser();
            if (Objects.nonNull(u)){
                this.tokenUserLoginHandler.loginOff(u);
                saveCurrentLoginUser(null);
            }
        }
    }

    private void loginOff(String token) {
        String tokenKey = createTokenKey(token);
        redisUtils.del(tokenKey);
    }

    @Override
    public U getUserByToken(Class<U> clazz) {
        String token = getToken();
        String tokenKey = createTokenKey(token);
        String userStr = redisUtils.get(tokenKey, "");
        if (StringUtils.isNotBlank(userStr)) {
            return JSONObject.parseObject(userStr, clazz);
        }
        return null;
    }

    @Override
    public String createAndSaveToken(U userInfo) {
        try {
            String token = createToken(userInfo);
            saveToCookie(token);
            return token;
        } catch (Exception e) {
            logger.error("token异常createAndSaveToken():" + e);
            throw e;
        }
    }

    private void saveToCookie(String token) {
        logger.info("开始创建token:" + token);
        HttpServletResponse resp = getResponse();
        //设置cookie
        Cookie cookie = new Cookie(tokenManagerConfig.getCookieKey(), token);

        cookie.setMaxAge(tokenManagerConfig.getExpires(token));
        cookie.setPath("/");
        resp.addCookie(cookie);
    }

    private void clearCookieToken() {
        HttpServletResponse resp = getResponse();
        //设置cookie
        Cookie cookie = new Cookie(tokenManagerConfig.getCookieKey(), "");
        cookie.setMaxAge(0);
        cookie.setPath("/");
        resp.addCookie(cookie);
    }

    private String createTokenKey(String token) {
        return tokenManagerConfig.getKeyPrefix() + token;
    }


    private String createToken(U userInfo) {
        Objects.requireNonNull(userInfo, "用户信息不能为空");
        //使用uuid作为源token
        String token = this.tokenUserLoginHandler.loginAndCreateToken(userInfo);
        String tokenKey = createTokenKey(token);
        logger.info("用户登录信息缓存{}:"+JSONObject.toJSONString(userInfo));
        redisUtils.set(tokenKey, JSONObject.toJSONString(userInfo), tokenManagerConfig.getExpires(token));
        return token;
    }

    /**
     * 获取上下午的response
     * @return
     */
    private HttpServletResponse getResponse() {
        return ((ServletRequestAttributes) RequestContextHolder.getRequestAttributes()).getResponse();
    }

    /**
     * 获取上下文的request
     * @return
     */
    private HttpServletRequest getRequest() {
        return ((ServletRequestAttributes) RequestContextHolder.getRequestAttributes()).getRequest();
    }

    /**
     * 获取请求中的token
     * @return
     */
    private String getToken() {
        HttpServletRequest request = getRequest();

        // 先从请求参数中获取token
        String token = request.getParameter(tokenManagerConfig.getCookieKey());
        // 如果没有获取到,则从head中获取
        if (StringUtils.isBlank(token)) {
            token = request.getHeader(tokenManagerConfig.getCookieKey());
        }
        // 如果没有获取到,则从cookie中获取
        if (StringUtils.isBlank(token)) {
            token = getCookie(request, tokenManagerConfig.getCookieKey());
        }

        return token;

    }

    /**
     * 从response中获取指定cookie名的cookie值
     * @param request
     * @param cookieKey
     * @return
     */
    private String getCookie(HttpServletRequest request, String cookieKey) {
        Cookie[] cookies = request.getCookies();
        if (cookies == null) {
            return "";
        }
        for (Cookie cookie : cookies) {
            if (cookie.getName().equals(cookieKey)) {
                return cookie.getValue();
            }
        }

        return "";
    }

    @Override
    public void saveCurrentLoginUser(U currentUser) {
        currentLoginUser.set(currentUser);
    }

    private U getCurrentLoginUser(){
        return currentLoginUser.get();
    }
}

创建并保存token：生成token,保存登录用户信息到redis中和保存token到cookie中

1
2
3
4
5
6
7
8
9
10
11
@Override
public String createAndSaveToken(U userInfo) {
    try {
        String token = createToken(userInfo);
        saveToCookie(token);
        return token;
    } catch (Exception e) {
        logger.error("token异常createAndSaveToken():" + e);
        throw e;
    }
}

3.禁止用户多地登录扩展处理器:DuplicateCheckUserLoginHandler

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang.StringUtils;

@Slf4j
public class DuplicateCheckUserLoginHandler implements TokenUserLoginHandler<AuthUser> {
    private AbstractRedisCache redisUtils;
    private RedisTokenManagerConfig tokenManagerConfig;
    private final String userTokenRedisKeyTemplate = "logincheck:";
    private final String appUserTokenRedisKeyTemplate = "app:logincheck:";

    public DuplicateCheckUserLoginHandler(AbstractRedisCache redisUtils, RedisTokenManagerConfig tokenManagerConfig) {
        this.redisUtils = redisUtils;
        this.tokenManagerConfig = tokenManagerConfig;
    }

    @Override
    public String loginAndCreateToken(AuthUser loginUser) {
        String loginKey = getRedisKey(loginUser.getUserId(), loginUser.isApp());
        String token = redisUtils.get(loginKey,"");
        if (StringUtils.isNotBlank(token)){
            redisUtils.del(createTokenKey(token));
            log.info(String.format("用户%s对应的token[%s]被强制登出",loginUser.getUserName(),token));
        }
        String newToken =  StringConvertUtils.shortUuid();
        if (loginUser.isApp()){
            newToken = AuthorizationConstants.IS_APP_KEY + newToken;
        }
        redisUtils.set(loginKey,newToken,getExpires(loginKey));
        return newToken;
    }

    @Override
    public int extend(AuthUser loginUser) {
        String loginKey = getRedisKey(loginUser.getUserId());
        if (redisUtils.exists(loginKey)) {
            redisUtils.expire(loginKey, getExpires(loginKey));
        }
        return loginUser.isApp() ? tokenManagerConfig.getExpires() * 24 * 7 : tokenManagerConfig.getExpires();
    }

    @Override
    public void loginOff(AuthUser loginUser) {
        String loginKey = getRedisKey(loginUser.getUserId());
        redisUtils.del(loginKey);
    }

    private String getRedisKey(long userId){
        return this.getRedisKey(userId, false);
    }

    private String getRedisKey(long userId, boolean isApp){
        if (isApp) {
            return appUserTokenRedisKeyTemplate + userId;
        } else {
            return userTokenRedisKeyTemplate + userId;
        }
    }

    private String createTokenKey(String token) {
        return tokenManagerConfig.getKeyPrefix() + token;
    }

    private int getExpires(String key){
        return key.contains("app") ? tokenManagerConfig.getExpires() * 24 * 7 : tokenManagerConfig.getExpires();
    }

}

RedisTokenManager的spring上下文加载器:AppAutoConfiguraction

1
2
3
4
5
@Bean
public TokenManager<AuthUser> tokenManager(AbstractRedisCache abstractRedisCache,RedisTokenManagerConfig redisTokenManagerConfig){
	DuplicateCheckUserLoginHandler duplicateCheckUserLoginHandler = new DuplicateCheckUserLoginHandler(abstractRedisCache, redisTokenManagerConfig);
	return new RedisTokenManager<>(abstractRedisCache,redisTokenManagerConfig,duplicateCheckUserLoginHandler);
}
