Spring源码-AOP的具体实现

容器启动,切面类,切入点,advice(通知)扫描创建代理类阶段(准备AOP相关对象的BeanDefinition)

理解:整体就是完成AspectJExpressionPointcut,advisor,AspectJAwareAdvisorAutoProxyCreator的BeanDefinition的注入

  1. xml形式开启AOP,将AOP标签相关信息解析成pointcut,advisor,aspect封装成BeanDefinition添加到容器;
    各个对象内部包含关系AspectJPointcutAdvisor –> Advice(AspectJAroundAdvice, AspectJAfterThrowingAdvice, AspectJAfterReturningAdvice, AspectJAfterAdvice, AspectJMethodBeforeAdvice) –>
    (MethodLocatingFactoryBean),表达式,SimpleBeanFactoryAwareAspectInstanceFactory)
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
    	// 1.默认命名空间的处理
    	if (delegate.isDefaultNamespace(root)) {
    		NodeList nl = root.getChildNodes();
    		// 遍历root的子节点列表
    		for (int i = 0; i < nl.getLength(); i++) {
    			Node node = nl.item(i);
    			if (node instanceof Element) {
    				Element ele = (Element) node;
    				// 1.1 默认命名空间节点的处理，例如：<bean id="test" class="" />
    				if (delegate.isDefaultNamespace(ele)) {
    					parseDefaultElement(ele, delegate);
    				}
    				else {
    					// 1.2 自定义命名空间节点的处理，例如：<context:component-scan/>、<aop:aspectj-autoproxy/>
    					delegate.parseCustomElement(ele);
    				}
    			}
    		}
    	}
    	else {
    		// 2.自定义命名空间的处理
    		delegate.parseCustomElement(root);
    	}
    }

解析xml下AOP相关的标签

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
// ConfigBeanDefinitionParser.java
public BeanDefinition parse(Element element, ParserContext parserContext) {
	CompositeComponentDefinition compositeDef =
			new CompositeComponentDefinition(element.getTagName(), parserContext.extractSource(element));
	parserContext.pushContainingComponent(compositeDef);
	// 注入自动代理的创建器
	configureAutoProxyCreator(parserContext, element);

	List<Element> childElts = DomUtils.getChildElements(element);
	for (Element elt: childElts) {
		String localName = parserContext.getDelegate().getLocalName(elt);
		if (POINTCUT.equals(localName)) {
			parsePointcut(elt, parserContext);
		}
		else if (ADVISOR.equals(localName)) {
			parseAdvisor(elt, parserContext);
		}
		else if (ASPECT.equals(localName)) {
			parseAspect(elt, parserContext);
		}
	}

	parserContext.popAndRegisterContainingComponent();
	return null;
}
  1. 开启AOP后,Spring会加载一些内部对象到容器;
    向容器中注入AspectJAwareAdvisorAutoProxyCreator这个自动代理创建器
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    private void configureAutoProxyCreator(ParserContext parserContext, Element element) {
    	AopNamespaceUtils.registerAspectJAutoProxyCreatorIfNecessary(parserContext, element);
    }

    public static void registerAspectJAutoProxyCreatorIfNecessary(
    		ParserContext parserContext, Element sourceElement) {

    	BeanDefinition beanDefinition = AopConfigUtils.registerAspectJAutoProxyCreatorIfNecessary(
    			parserContext.getRegistry(), parserContext.extractSource(sourceElement));
    	useClassProxyingIfNecessary(parserContext.getRegistry(), sourceElement);
    	registerComponentIfNecessary(beanDefinition, parserContext);
    }

    public static BeanDefinition registerAspectJAutoProxyCreatorIfNecessary(
    		BeanDefinitionRegistry registry, @Nullable Object source) {

    	return registerOrEscalateApcAsRequired(AspectJAwareAdvisorAutoProxyCreator.class, registry, source);
    }

    private static BeanDefinition registerOrEscalateApcAsRequired(
    		Class<?> cls, BeanDefinitionRegistry registry, @Nullable Object source) {

    	Assert.notNull(registry, "BeanDefinitionRegistry must not be null");

    	if (registry.containsBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME)) {
    		BeanDefinition apcDefinition = registry.getBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME);
    		if (!cls.getName().equals(apcDefinition.getBeanClassName())) {
    			int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName());
    			int requiredPriority = findPriorityForClass(cls);
    			if (currentPriority < requiredPriority) {
    				apcDefinition.setBeanClassName(cls.getName());
    			}
    		}
    		return null;
    	}

    	RootBeanDefinition beanDefinition = new RootBeanDefinition(cls);
    	beanDefinition.setSource(source);
    	beanDefinition.getPropertyValues().add("order", Ordered.HIGHEST_PRECEDENCE);
    	beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
    	// AUTO_PROXY_CREATOR_BEAN_NAME = "org.springframework.aop.config.internalAutoProxyCreator";
    	registry.registerBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME, beanDefinition);
    	return beanDefinition;
    }

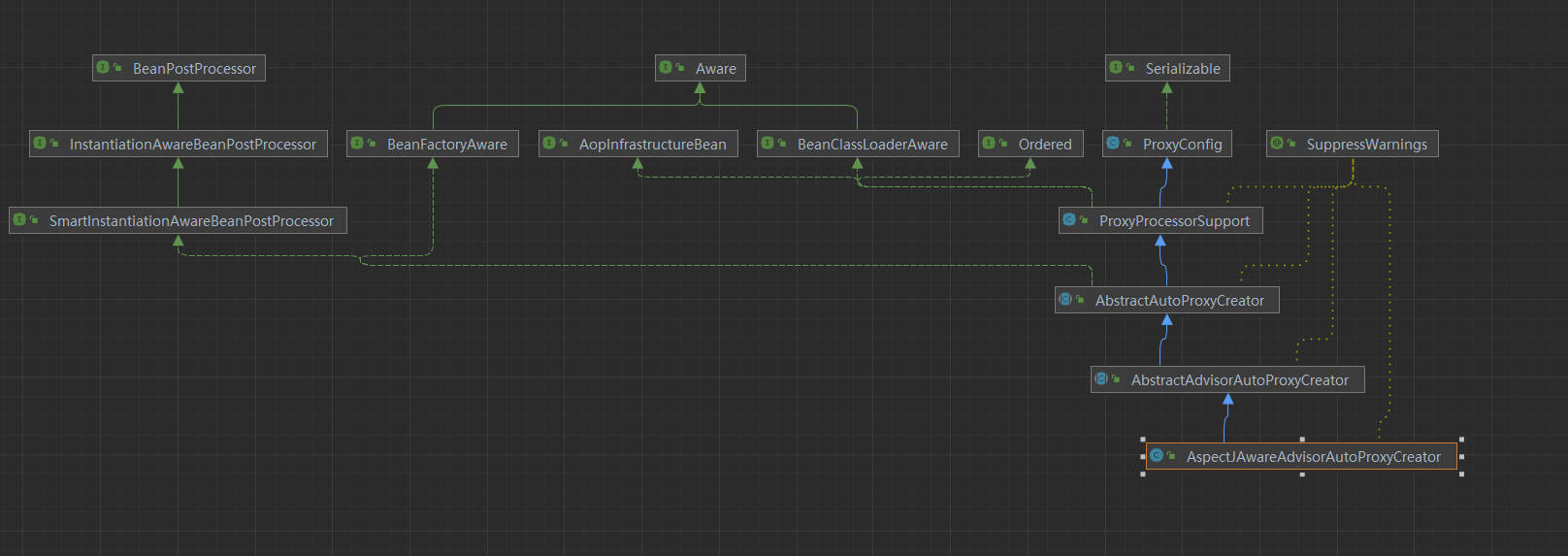

从上图可以看出AspectJAwareAdvisorAutoProxyCreator属于AbstractAdvisorAutoProxyCreator,AbstractAutoProxyCreator的子类,并且实现了SmartInstantiationAwareBeanPostProcessor接口,该接口继承自BeanPostProcessor,该接口内部有一个对于动态代理非常重要的方法getEarlyBeanReference,该方法常与三级缓存配合用于创建代理对象;

切面类,Advisor,Pointcut实例化阶段

  1. 在resolveBeforeInstantiation中会遍历所有的InstantiationAwareBeanPostProcessors,在扫描的AOP相关类的时候会引入spring的内部对象AspectJAwareAdvisorAutoProxyCreator,它属于AbstractAutoProxyCreator子类,所有这里会被匹配到并执行postProcessBeforeInstantiation,在该方法中会创建所有的Advisor对象;
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
    			throws BeanCreationException {
    	try {
    		// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
    		// 在实例化bean之前,给BeanPostProcessors一个机会返回代理对象
    		Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
    		if (bean != null) {
    			return bean;
    		}
    	}
    	catch (Throwable ex) {
    		throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
    				"BeanPostProcessor before instantiation of bean failed", ex);
    	}

    	try {
    		Object beanInstance = doCreateBean(beanName, mbdToUse, args);
    		if (logger.isTraceEnabled()) {
    			logger.trace("Finished creating instance of bean '" + beanName + "'");
    		}
    		return beanInstance;
    	}
    	catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
    		// A previously detected exception with proper bean creation context already,
    		// or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.
    		throw ex;
    	}
    	catch (Throwable ex) {
    		throw new BeanCreationException(
    				mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
    	}
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
	Object bean = null;
	if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {
		// Make sure bean class is actually resolved at this point.
		if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
			Class<?> targetType = determineTargetType(beanName, mbd);
			if (targetType != null) {
				// 执行InstantiationAwareBeanPostProcessors的Before方法
				bean = applyBeanPostProcessorsBeforeInstantiation(targetType, beanName);
				if (bean != null) {
					// 执行InstantiationAwareBeanPostProcessors的After方法
					bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
				}
			}
		}
		mbd.beforeInstantiationResolved = (bean != null);
	}
	return bean;
}

protected Object applyBeanPostProcessorsBeforeInstantiation(Class<?> beanClass, String beanName) {
	for (BeanPostProcessor bp : getBeanPostProcessors()) {
		if (bp instanceof InstantiationAwareBeanPostProcessor) {
			InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
			Object result = ibp.postProcessBeforeInstantiation(beanClass, beanName);
			if (result != null) {
				return result;
			}
		}
	}
	return null;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) {
	Object cacheKey = getCacheKey(beanClass, beanName);

	if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
		if (this.advisedBeans.containsKey(cacheKey)) {
			return null;
		}
		if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
			this.advisedBeans.put(cacheKey, Boolean.FALSE);
			return null;
		}
	}

	// Create proxy here if we have a custom TargetSource.
	// Suppresses unnecessary default instantiation of the target bean:
	// The TargetSource will handle target instances in a custom fashion.
	TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
	if (targetSource != null) {
		if (StringUtils.hasLength(beanName)) {
			this.targetSourcedBeans.add(beanName);
		}
		Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
		Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
		this.proxyTypes.put(cacheKey, proxy.getClass());
		return proxy;
	}

	return null;
}
1
2
3
4
5
6
7
8
9
10
11
12
// AspectJAwareAdvisorAutoProxyCreator.java
protected boolean shouldSkip(Class<?> beanClass, String beanName) {
	// TODO: Consider optimization by caching the list of the aspect names
	List<Advisor> candidateAdvisors = findCandidateAdvisors();
	for (Advisor advisor : candidateAdvisors) {
		if (advisor instanceof AspectJPointcutAdvisor &&
				((AspectJPointcutAdvisor) advisor).getAspectName().equals(beanName)) {
			return true;
		}
	}
	return super.shouldSkip(beanClass, beanName);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
protected List<Advisor> findCandidateAdvisors() {
	Assert.state(this.advisorRetrievalHelper != null, "No BeanFactoryAdvisorRetrievalHelper available");
	return this.advisorRetrievalHelper.findAdvisorBeans();
}

public List<Advisor> findAdvisorBeans() {
	// Determine list of advisor bean names, if not cached already.
	String[] advisorNames = this.cachedAdvisorBeanNames;
	if (advisorNames == null) {
		// Do not initialize FactoryBeans here: We need to leave all regular beans
		// uninitialized to let the auto-proxy creator apply to them!
		advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
				this.beanFactory, Advisor.class, true, false);
		this.cachedAdvisorBeanNames = advisorNames;
	}
	if (advisorNames.length == 0) {
		return new ArrayList<>();
	}

	List<Advisor> advisors = new ArrayList<>();
	for (String name : advisorNames) {
		if (isEligibleBean(name)) {
			if (this.beanFactory.isCurrentlyInCreation(name)) {
				if (logger.isTraceEnabled()) {
					logger.trace("Skipping currently created advisor '" + name + "'");
				}
			}
			else {
				try {
					advisors.add(this.beanFactory.getBean(name, Advisor.class));
				}
				catch (BeanCreationException ex) {
					Throwable rootCause = ex.getMostSpecificCause();
					if (rootCause instanceof BeanCurrentlyInCreationException) {
						BeanCreationException bce = (BeanCreationException) rootCause;
						String bceBeanName = bce.getBeanName();
						if (bceBeanName != null && this.beanFactory.isCurrentlyInCreation(bceBeanName)) {
							if (logger.isTraceEnabled()) {
								logger.trace("Skipping advisor '" + name +
										"' with dependency on currently created bean: " + ex.getMessage());
							}
							// Ignore: indicates a reference back to the bean we're trying to advise.
							// We want to find advisors other than the currently created bean itself.
							continue;
						}
					}
					throw ex;
				}
			}
		}
	}
	return advisors;
}
  1. 在Bean初始化阶段会调用BeanPostProcessor的postProcessAfterInitialization方法会获取到所有的Advisor,并向Advisor集合中添加ExposeInvocationInterceptor,该拦截器是AOP拦截器链的核心,添加完成后会对整个集合的拦截器进行拓扑排序,并(对有向无环图的排序,
    排序结果不唯一),完成后会创建代理对象覆盖原来的实例化对象,这里创建代理对象有两种方式,一种是JDK的动态代理(当代理类实现了接口),
    另一种是Cglib的动态代理;
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {
    	if (System.getSecurityManager() != null) {
    		AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
    			invokeAwareMethods(beanName, bean);
    			return null;
    		}, getAccessControlContext());
    	}
    	else {
    		invokeAwareMethods(beanName, bean);
    	}

    	Object wrappedBean = bean;
    	if (mbd == null || !mbd.isSynthetic()) {
    		wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
    	}

    	try {
    		invokeInitMethods(beanName, wrappedBean, mbd);
    	}
    	catch (Throwable ex) {
    		throw new BeanCreationException(
    				(mbd != null ? mbd.getResourceDescription() : null),
    				beanName, "Invocation of init method failed", ex);
    	}
    	if (mbd == null || !mbd.isSynthetic()) {
    		wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
    	}

    	return wrappedBean;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
		throws BeansException {

	Object result = existingBean;
	// 1.遍历所有注册的BeanPostProcessor实现类，调用postProcessAfterInitialization方法
	for (BeanPostProcessor processor : getBeanPostProcessors()) {
		// 2.在bean初始化后，调用postProcessAfterInitialization方法
		Object current = processor.postProcessAfterInitialization(result, beanName);
		if (current == null) {
			// 3.如果返回null，则不会调用后续的BeanPostProcessors
			return result;
		}
		result = current;
	}
	return result;
}
1
2
3
4
5
6
7
8
9
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
	if (bean != null) {
		Object cacheKey = getCacheKey(bean.getClass(), beanName);
		if (this.earlyProxyReferences.remove(cacheKey) != bean) {
			return wrapIfNecessary(bean, beanName, cacheKey);
		}
	}
	return bean;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
	if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
		return bean;
	}
	if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
		return bean;
	}
	if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
		this.advisedBeans.put(cacheKey, Boolean.FALSE);
		return bean;
	}

	// Create proxy if we have advice.
	Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
	if (specificInterceptors != DO_NOT_PROXY) {
		this.advisedBeans.put(cacheKey, Boolean.TRUE);
		Object proxy = createProxy(
				bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
		this.proxyTypes.put(cacheKey, proxy.getClass());
		return proxy;
	}

	this.advisedBeans.put(cacheKey, Boolean.FALSE);
	return bean;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
		@Nullable Object[] specificInterceptors, TargetSource targetSource) {

	if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
		AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
	}

	ProxyFactory proxyFactory = new ProxyFactory();
	proxyFactory.copyFrom(this);

	if (!proxyFactory.isProxyTargetClass()) {
		if (shouldProxyTargetClass(beanClass, beanName)) {
			proxyFactory.setProxyTargetClass(true);
		}
		else {
			evaluateProxyInterfaces(beanClass, proxyFactory);
		}
	}

	Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
	proxyFactory.addAdvisors(advisors);
	proxyFactory.setTargetSource(targetSource);
	customizeProxyFactory(proxyFactory);

	proxyFactory.setFrozen(this.freezeProxy);
	if (advisorsPreFiltered()) {
		proxyFactory.setPreFiltered(true);
	}

	return proxyFactory.getProxy(getProxyClassLoader());
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
public Object getProxy(@Nullable ClassLoader classLoader) {
	return createAopProxy().getProxy(classLoader);
}

protected final synchronized AopProxy createAopProxy() {
	if (!this.active) {
		activate();
	}
	return getAopProxyFactory().createAopProxy(this);
}

public interface AopProxyFactory {
	AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException;
}

public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
	if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) {
		Class<?> targetClass = config.getTargetClass();
		if (targetClass == null) {
			throw new AopConfigException("TargetSource cannot determine target class: " +
					"Either an interface or a target is required for proxy creation.");
		}
		if (targetClass.isInterface() || Proxy.isProxyClass(targetClass)) {
			return new JdkDynamicAopProxy(config);
		}
		return new ObjenesisCglibAopProxy(config);
	}
	else {
		return new JdkDynamicAopProxy(config);
	}
}

代理类调用具体业务方法阶段
