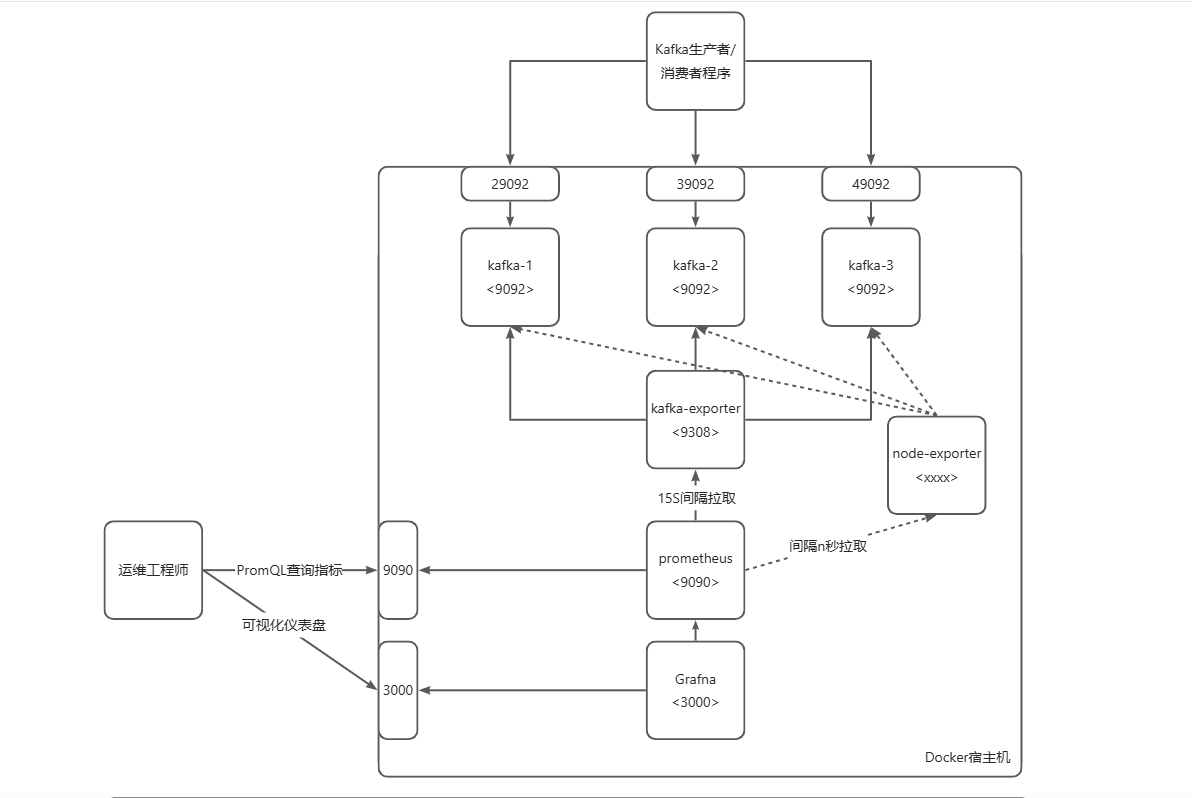

Kafka指标监控架构

image-20221120-1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
mkdir /home/kafka
cd /home/kafka
cat > docker-compose.yaml <<-'EOF'
services:
  kafka-1:
    image: apache/kafka:3.9.0
    container_name: kafka-1
    ports:
      - 29092:9092
    environment:
      KAFKA_NODE_ID: 1
      KAFKA_PROCESS_ROLES: "broker,controller"
      KAFKA_LISTENERS: 'PLAINTEXT://:19092,PLAINTEXT_HOST://:9092,CONTROLLER://:9093'
      KAFKA_ADVERTISED_LISTENERS: 'PLAINTEXT://kafka-1:19092,PLAINTEXT_HOST://192.168.31.230:29092,CONTROLLER://kafka-1:9093'
      KAFKA_INTER_BROKER_LISTENER_NAME: PLAINTEXT
      KAFKA_CONTROLLER_LISTENER_NAMES: CONTROLLER
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: CONTROLLER:PLAINTEXT,PLAINTEXT:PLAINTEXT,PLAINTEXT_HOST:PLAINTEXT
      KAFKA_CONTROLLER_QUORUM_VOTERS: '1@kafka-1:9093,2@kafka-2:9093,3@kafka-3:9093'
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0
    networks:
      - kafka_network

  kafka-2:
    image: apache/kafka:3.9.0
    container_name: kafka-2
    ports:
      - 39092:9092
    environment:
      KAFKA_NODE_ID: 2
      KAFKA_PROCESS_ROLES: "broker,controller"
      KAFKA_LISTENERS: 'PLAINTEXT://:19092,PLAINTEXT_HOST://:9092,CONTROLLER://:9093'
      KAFKA_ADVERTISED_LISTENERS: 'PLAINTEXT://kafka-2:19092,PLAINTEXT_HOST://192.168.31.230:39092,CONTROLLER://kafka-2:9093'
      KAFKA_INTER_BROKER_LISTENER_NAME: PLAINTEXT
      KAFKA_CONTROLLER_LISTENER_NAMES: CONTROLLER
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: CONTROLLER:PLAINTEXT,PLAINTEXT:PLAINTEXT,PLAINTEXT_HOST:PLAINTEXT
      KAFKA_CONTROLLER_QUORUM_VOTERS: '1@kafka-1:9093,2@kafka-2:9093,3@kafka-3:9093'
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0
    networks:
      - kafka_network

  kafka-3:
    image: apache/kafka:3.9.0
    container_name: kafka-3
    ports:
      - 49092:9092
    environment:
      KAFKA_NODE_ID: 3
      KAFKA_PROCESS_ROLES: "broker,controller"
      KAFKA_LISTENERS: 'PLAINTEXT://:19092,PLAINTEXT_HOST://:9092,CONTROLLER://:9093'
      KAFKA_ADVERTISED_LISTENERS: 'PLAINTEXT://kafka-3:19092,PLAINTEXT_HOST://192.168.31.230:49092,CONTROLLER://kafka-3:9093'
      KAFKA_INTER_BROKER_LISTENER_NAME: PLAINTEXT
      KAFKA_CONTROLLER_LISTENER_NAMES: CONTROLLER
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: CONTROLLER:PLAINTEXT,PLAINTEXT:PLAINTEXT,PLAINTEXT_HOST:PLAINTEXT
      KAFKA_CONTROLLER_QUORUM_VOTERS: '1@kafka-1:9093,2@kafka-2:9093,3@kafka-3:9093'
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0
    networks:
      - kafka_network

networks:
  kafka_network:
    driver: bridge
EOF

docker-compose up -d

1
2
3
4
5
6
7
8
9
10
11
12
mkdir /home/kafka
cd /home/kafka
cat > prometheus.yml <<-'EOF'
global:
  scrape_interval: 15s

scrape_configs:
  - job_name: 'kafka-exporter'
    static_configs:
      - targets: ['kafka-exporter:9308']
EOF

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
mkdir /home/kafka
cd /home/kafka
cat > docker-compose-metrics.yaml <<-'EOF'
services:
  kafka-exporter:
    image: danielqsj/kafka-exporter:v1.8.0
    container_name: kafka-exporter
    command:
      - "--kafka.server=kafka-1:9092"
      - "--kafka.server=kafka-2:9092"
      - "--kafka.server=kafka-3:9092"
    networks:
      - kafka_network

  prometheus:
    image: prom/prometheus:latest
    container_name: prometheus
    ports:
      - 9090:9090
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml
    networks:
      - kafka_network

  grafana:
    image: grafana/grafana:latest
    container_name: grafana
    ports:
      - 3000:3000
    environment:
      GF_SECURITY_ADMIN_PASSWORD: admin
    depends_on:
      - prometheus
    networks:
      - kafka_network

networks:
  kafka_network:
    driver: bridge
EOF

docker-compose -f docker-compose-metrics.yaml up -d

docker logs -f kafka-exporter

https://grafana.com/grafana/dashboards/?search=kafka+exporter
